Take your video production to the next level with the Viltrox DC-A1, a 7-inch ultra-bright camera monitor designed for demanding on-location and studio shoots. Featuring a full touchscreen interface, 4K 60Hz HDMI support, and an impressive 2800 cd/m² brightness, the DC-A1 remains clearly visible even in direct sunlight—making it ideal for outdoor filming.
Built with rugged aluminium construction and weighing just 348 g, this monitor is designed to go wherever your camera goes. It includes professional monitoring tools like waveform, focus peaking, zebras, and false colour. You can also upload your own 3D LUTs via USB for consistent colour grading on set.
Power it using an NP-F550/F750/F970 battery, USB-C, or 12V DC input, keeping you going through long shooting days. Whether you're shooting with a DSLR, mirrorless, or cinema camera, the DC-A1 gives you the clarity, control, and flexibility professionals demand.
Key Features:
Ultra-Bright 2800-Nit Display
Easily visible in direct sunlight—perfect for outdoor shoots.
Full Touchscreen & Intuitive Controls
Smooth, responsive interface with custom buttons and dial for fast access to key settings.
Pro-Level Monitoring Tools
Includes waveform, focus peaking, zebras, false colour, histogram, RGB parade, image flip, and pixel-to-pixel zoom.
True 4K Input & Loop Output
Supports up to DCI/UHD 4K at 60 fps via HDMI 2.0 in/out—ideal for high-end workflows.
Rugged & Travel-Ready Design
Lightweight aluminium body with sun hood and carry case. Built for tough environments.
Multiple Power Options for All-Day Use
Use an NP-F battery, USB-C (9V/12V/15V/20V), or DC 10–18V input.
Specifications:
Display:
Screen: 7-Inch IPS Touchscreen
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Contrast Ratio: 1000:1
Refresh Rate: 60 Hz
Brightness: 2800 cd/m²
Viewing Angle: 170°
Pixel Density: 316 PPI
Colour Depth: 8-bit (16.7 million colours)
Colour Gamut: 100% sRGB
Interfaces:
Input: 1 x HDMI 2.0 IN
Output: 1 x HDMI 2.0 OUT (loop-through)
Audio Output: 1 x 3.5 mm headphone jack
USB: 1 x USB-A (LUT upload & firmware updates)
Power Input:
– DC 10–18V @ 2A
– USB-C ≥ 9V @ 3A (supports 9V/12V/15V/20V)
Power & Battery:

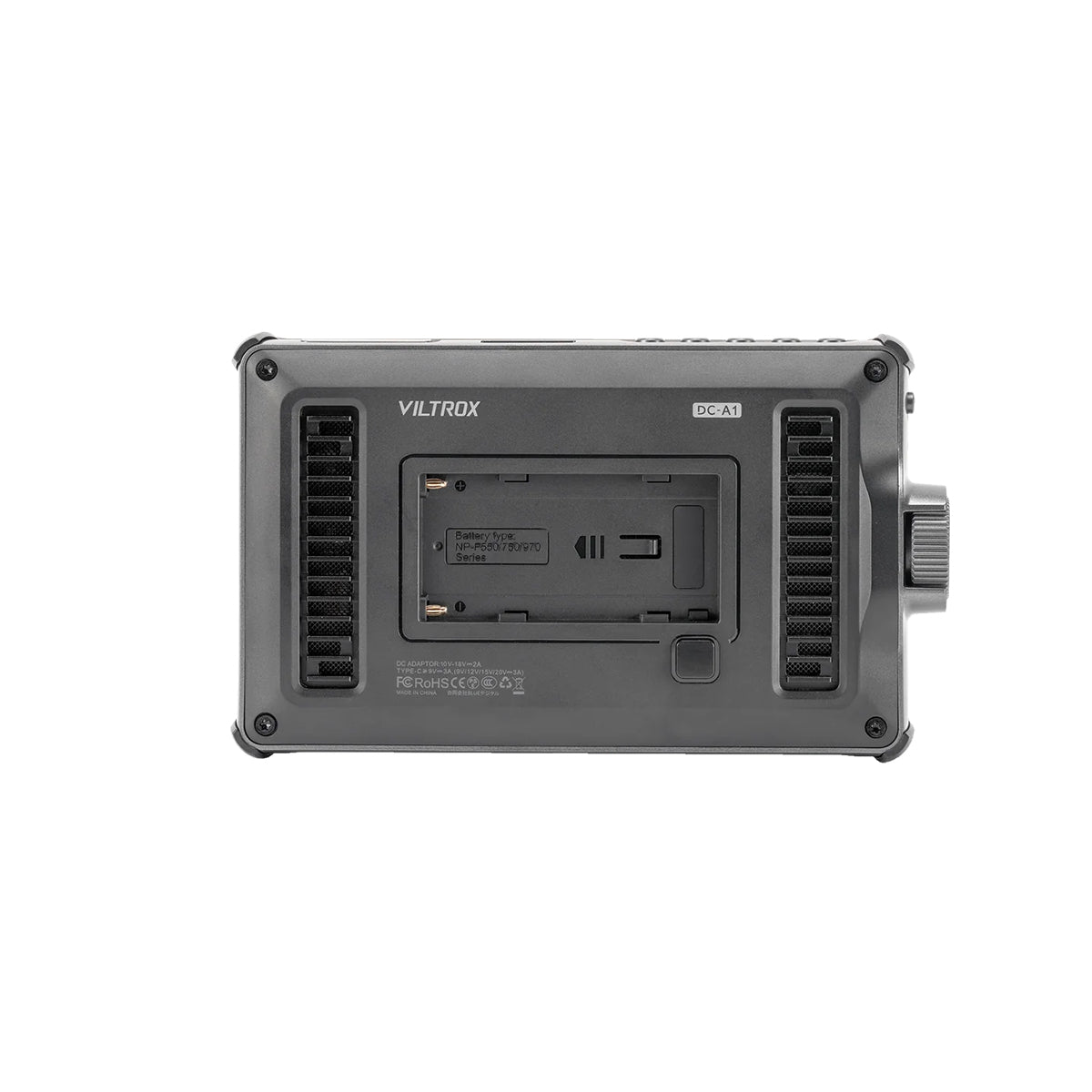

Battery Type: Sony NP-F550, NP-F750, NP-F970 (not included)
Power Options: NP-F battery / USB-C / 12V DC input
General:
Cooling: Built-in cooling fan
Mounting: 2 x 1/4"-20 threads (bottom and right)
Material: Aluminium
Weight: ±348 g (monitor only)
Dimensions: 187.8 x 110.5 x 28.5 mm
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
What’s in the Box:
1 x Viltrox DC-A1 7" 2800-Nit Camera Monitor

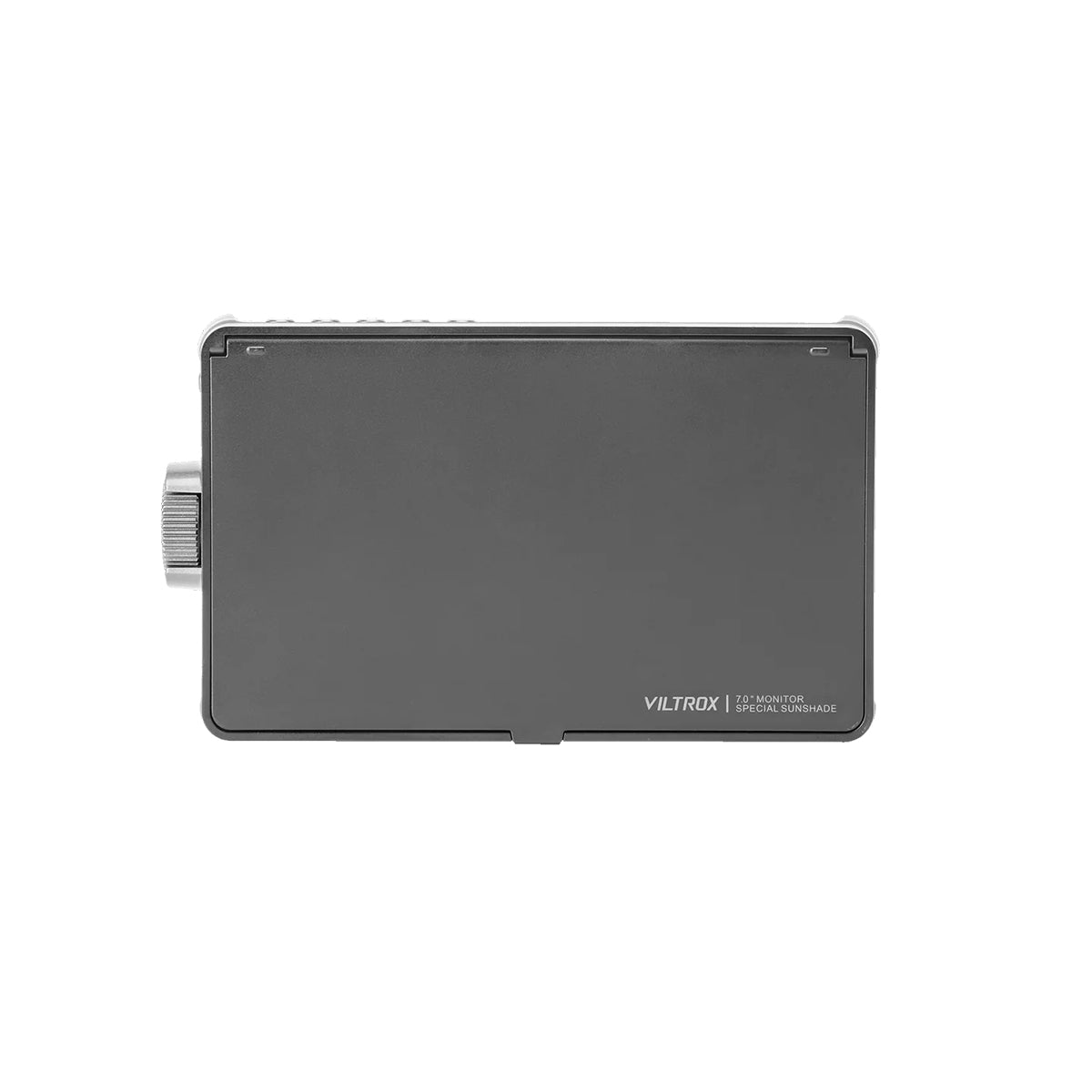

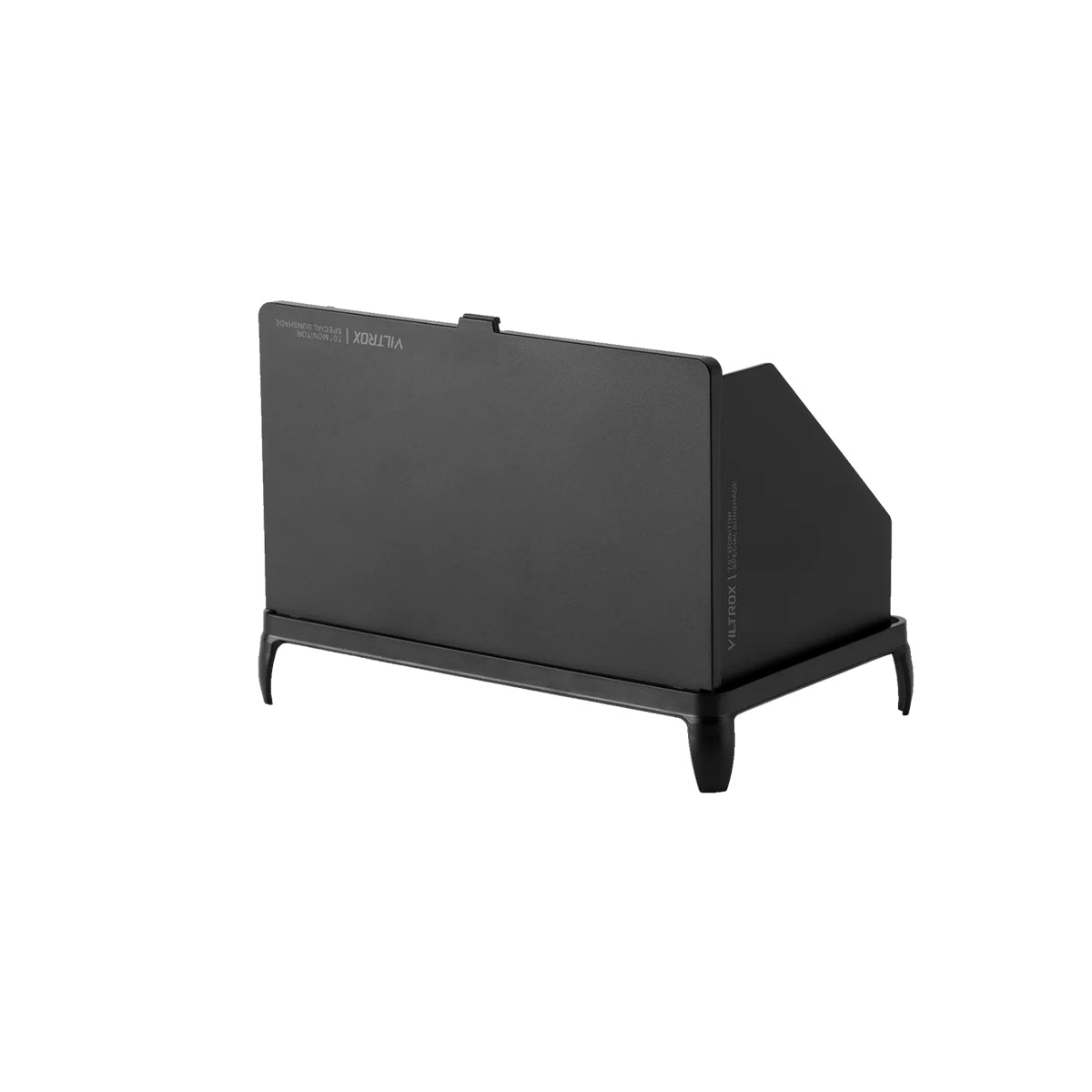

1 x Sun Hood
1 x HDMI Cable
1 x Tilt/Swivel Cold Shoe Mount Adapter
1 x User Manual
